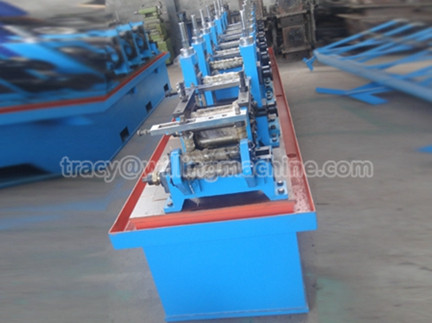

550kw Precision high frequency Longitudinal welded pipe mill line for custom mad
| Place of Origin: | BOTOU, China (Mainland) |
| Brand Name: | WI |
| Model Number: | 40-100 |
| Certification: | TUV |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | seaworthy packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, LC, CASH ETC |
| Supply Ability: | 30 Sets per month |
General Introduction
high frequency straight welded pipe production line is used to manufacture welded steel pipe of 40x40-100x100mm with 1.0mm-2.0mm of wall thickness. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Specifications:
| No. | Item | Description |
| 1 | Suitable material | Strip steel |
| 2 | Working speed | 20-60m/min |
| 3 | Main motor power | 550kw |
| 5 | Electrical control system | PLC control system with famous brand |
| 6 | Thickness of material | 1.0mm~2.0mm |
| 7 | Material expand axis | 160mm-400mm |
| 8 | Dimension | 70000x1200x5000mm |
| 9 | Driving mode | Chain |
| 10 | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 11 |
Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 12 | Material of cutting | Cr12 mould steel with quenched treatment |
| 13 | Working time | Can be 24 hours |
| 14 | Workers | 1-2 only |

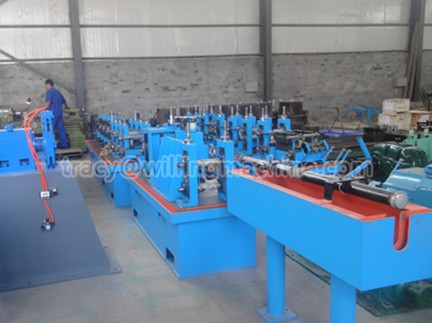

The technical flow of the production line
Scroll up → Uncoil → Cutting head, tail → Strip Steel head-tail butt welding →Accumulator → Forming → High frequency induction welding → Removing external burr → Sizing → Cutting → Checking& collecting → Binding → Weighing → Marking → Accessing Warehouse
