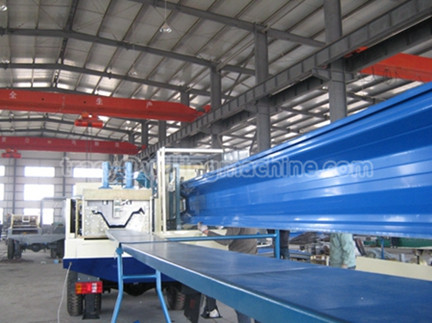

914-610 LONG SPAN ROLL FORMING MACHINE
Related products
| Place of Origin: | BOTOU, China (Mainland) |
| Brand Name: | WI |
| Model Number: | 914-610 |
| Certification: | TUV |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | seaworthy packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, LC, CASH ETC |
| Supply Ability: | 30 Sets per month |
MAIN TECHNICAL SPECIFICATION
Size: 8000mm × 2250mm × 2300mm
Total Weight: about 12KG
Main Motor Power: 18.5KW forming power is 7.5kw ; bending power is 4.0kw; cutting power is 4.0kw; conical power is 3.0kw
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Step of rollers: 8 steps
Thickness of the coil: 0.8-1.5mm
Gear/Spoket driving: 8 stations to form
Electric Standard: 380V / 50 HZ / 3 PHASE
Type of cutting: Roll-formed and length-set cutting
Ship Container: 40HC x 1
Operating factor of the panel: 66%
Proper span: ≤38m
| Name | Usage | Amount |
| Sewing machine | As spare part | 1 |
| Manual Decoiler | Mount metal sheet roll | 1 |
| Straight sheets cradle | Plate supporter | 8 |
| Arch sheets cradle | Plate supporter | 8 |
| Straight sheets side cradle | Plate supporter | 8 |
| Suspender | Lifting | 3 |
| Hanger | Lifting | 8 |
| Clamp | Bait sheets | 8 |
| Manual Super pliers | Bait sheets | 2 |
| VCD | Teach customers how to produce | 2 |
| Driving chains | To roll the gears | 3M |
| CHAIN HALF SECTION | AS SPARE | 5 |
| CHAIN WHOLE SECTION | AS SPARE | 5 |
| Designing software same as MIC | To help you design K-span project | 1 |
| Instruction book | To guide you how to use the machine | 1 |
| Manual calculator(electric sensing equipment) | Measure the length by hand | 1 |
| Switch | As spare | 1 |
| TOOL BOX | AS THE TOOL FOR MAINTENACE | 1 PIECE |
| ROLLING CRANDLE | TO RISE AND FALL THE MACHINE | 2 |
