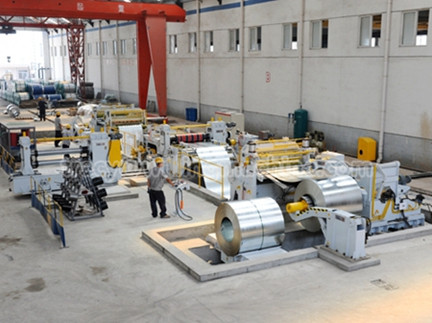

Cut to length slitting line
Related products
| Place of Origin: | BOTOU, China (Mainland) |
| Brand Name: | WI |
| Model Number: | 1.3m |
| Certification: | TUV |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | seaworthy packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, LC, CASH ETC |
| Supply Ability: | 30 Sets per month |
| No. | Item | Description |
| 1 | Suitable material | Strip steel, GI, PPGI, AL |
| 2 | Working speed | 0-50m/min not including punching and cutting |
| 3 | Main motor power | 18.5kw with cycloidal reducer |
| 4 | Hydraulic station power | 7.5kw |
| 5 | Electrical control system | PLC control system with famous brand |
| 6 | Thickness of material | 0.5-2.0mm |
| 7 | Shaft diameter | 80mm |
| 8 | Roller station | 12stations |
| 9 | Material expand axis | 200-600mm |
| 10 | Dimension | 11mX1.3mX1.35m |
| 11 | Driving mode | Chain |
| 12 | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 13 |
Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 14 | Material of cutting | Cr12 mould steel with quenched treatment |
| 15 | Working time | Can be 24 hours |
| 16 | Workers | 1-2 only |
